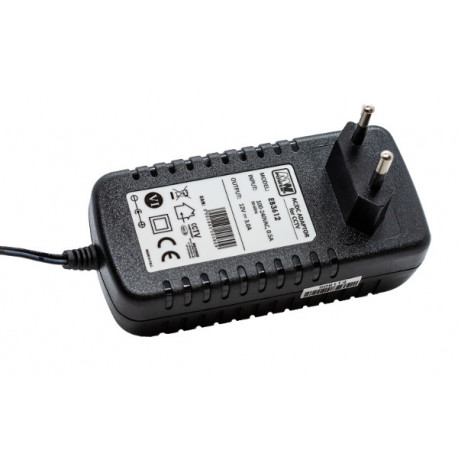

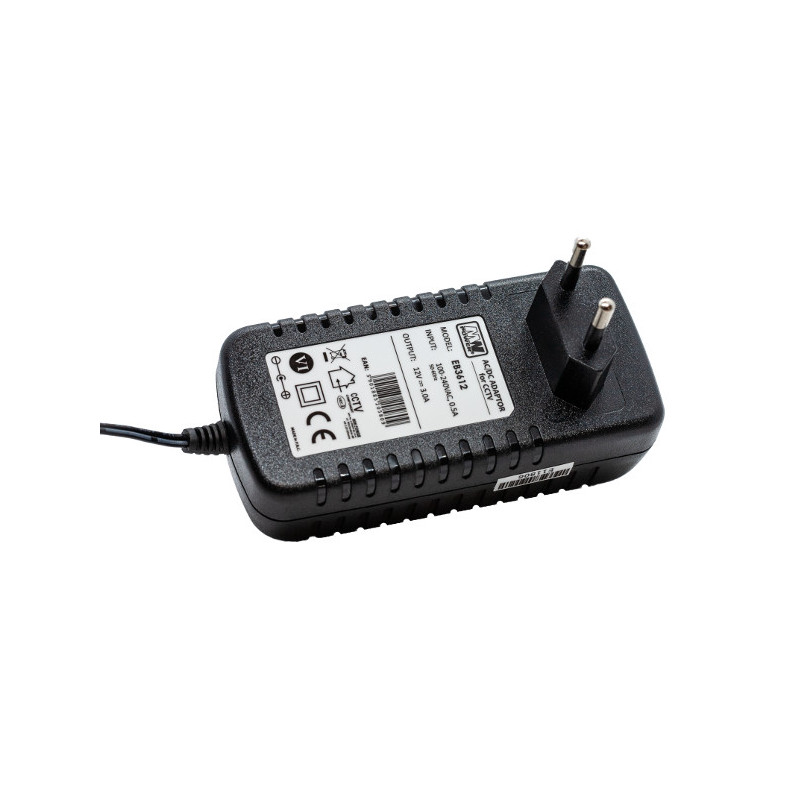

EB3612 Power Supply Adapter - 12 Volt - 3 Ampere - 36 Watt
Manufacturer: MW Power
This power supply adapter is suitable for 12 volt devices up to 3 ampere.
More info
MW Power EB series
The EB series from MW Power are power supply adapters with a plug with an inner size of 2.1 millimetres and an outer size of 5.5 millimetres. You can plug these power supplies directly into the wall socket. In addition, they accept all international mains voltages from 90 to 264 volts as input voltage, making them usable in other countries as well. They also meet all safety requirements and include short-circuit protection, among other things.
Data sheet
| Output voltage | 12 volt |
| Output current | 3 ampere |
| Power | 36 watt |
| Line regulation | ±2% |
| Load regulation | ±5% |
| Tolerance | ±8% |
| Ripple and noise | 120 millivolt peak to peak |
| Input voltage | 90 to 264 volt |
| Input frequency | 47 to 63 hertz |
| Efficiency | 87% |
| No load power consumption | 0.075 watt |
| Setup time | 1000 milliseconds |
| Rise time | 20 milliseconds |
| Hold up time | 10 milliseconds |
| Protection | Overload, Short circuit |
| Working temperature | 0 to 40 °C |
| Working humidity | 10 to 90% |
| Storage temperature | -20 to 85 °C |
| Storage humidity | 5 to 90% |
