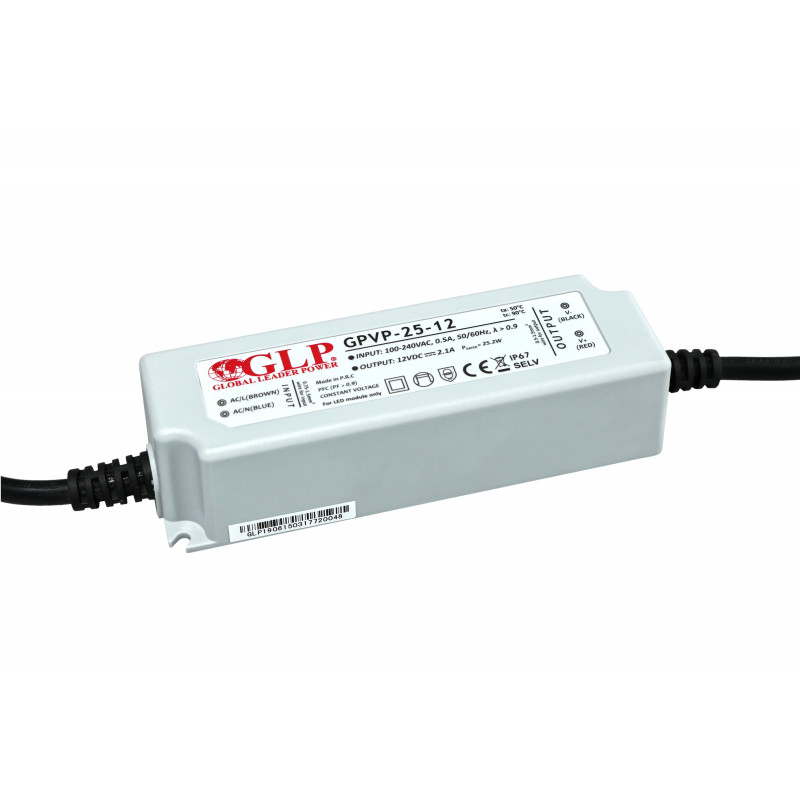

GPVP-25-12 Constant Voltage LED Power Supply - 12 Volt - 2 Ampere - 24 Watt
Manufacturer: Global Leader Power
This waterproof power supply is ideal for powering 12 volt LED lighting up to 2 ampere.
More info
Global Leader Power GPVP series
The GPVP series from Global Leader Power are power supplies with active power factor correction (PFC). As a result, the power factor of these power supplies is above 0.9. In addition, the wires are double insulated. These LED power supplies are waterproof (IP67) so that you can also use them for example outdoors. Moreover, these power supplies accept all international mains voltages from 90 to 264 volts as input voltage, which means they can be used in other countries as well. They also meet all safety requirements and include short-circuit protection.
Data sheet
| IP code | IP67 |
| Output voltage | 12 volt |
| Output current | 2 ampere |
| Power | 24 watt |
| Line regulation | ±1% |
| Load regulation | ±2% |
| Tolerance | ±3% |
| Ripple and noise | 200 millivolt peak to peak |
| Input voltage | 90 to 264 volt |
| Input frequency | 47 to 63 hertz |
| Efficiency | 84% |
| Leakage current | 0.25 milliampere |
| Power factor | At least 0.9 |
| Setup time | 500 milliseconds |
| Rise time | 15 milliseconds |
| Hold up time | 20 milliseconds |
| Protection | Over temperature, Over voltage, Overload, Short circuit |
| Working temperature | -30 to 70 °C |
| Working humidity | 20 to 90% |
| Storage temperature | -30 to 70 °C |
| Storage humidity | 10 to 95% |
