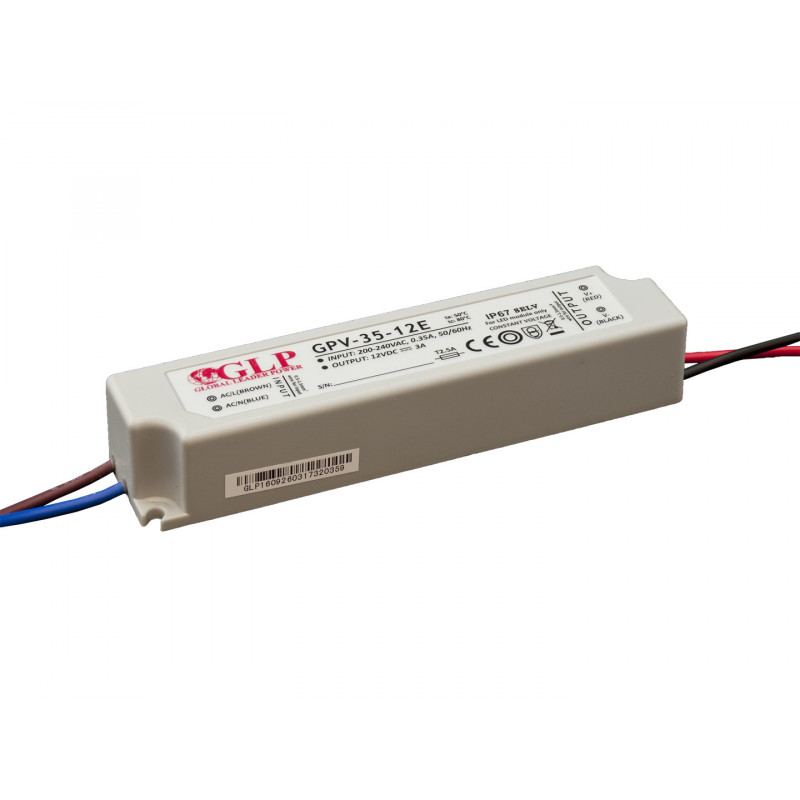

GPV-35-12E Constant Voltage LED Power Supply - 12 Volt - 3 Ampere - 36 Watt
Manufacturer: Global Leader Power
This waterproof power supply is ideal for powering 12 volt LED lighting up to 3 ampere.
This product is no longer in stock
More info
Global Leader Power GPV-E series
The GPV-E series from Global Leader Power is similar to the popular GPV series, however, these power supplies only accept European mains voltages from 180 to 264 volts. This allows these power supplies to be a bit smaller and cheaper. Like the GPV series, these LED power supplies are waterproof (IP67), allowing you to use them for example outdoors. They are also suitable for installation on furniture made of materials with unknown flammability properties. In addition they meet all safety requirements and include short-circuit protection, among other things.
Data sheet
| IP code | IP67 |
| Output voltage | 12 volt |
| Output current | 3 ampere |
| Power | 36 watt |
| Line regulation | ±1% |
| Load regulation | ±2% |
| Tolerance | ±3% |
| Ripple and noise | 200 millivolt peak to peak |
| Input voltage | 180 to 264 volt |
| Input frequency | 47 to 63 hertz |
| Efficiency | 82% |
| Leakage current | 0.25 milliampere |
| Setup time | 500 milliseconds |
| Rise time | 25 milliseconds |
| Hold up time | 20 milliseconds |
| Protection | Over current, Over temperature, Over voltage, Short circuit |
| Working temperature | -20 to 70 °C |
| Working humidity | 20 to 90% |
| Storage temperature | -40 to 80 °C |
| Storage humidity | 10 to 95% |
