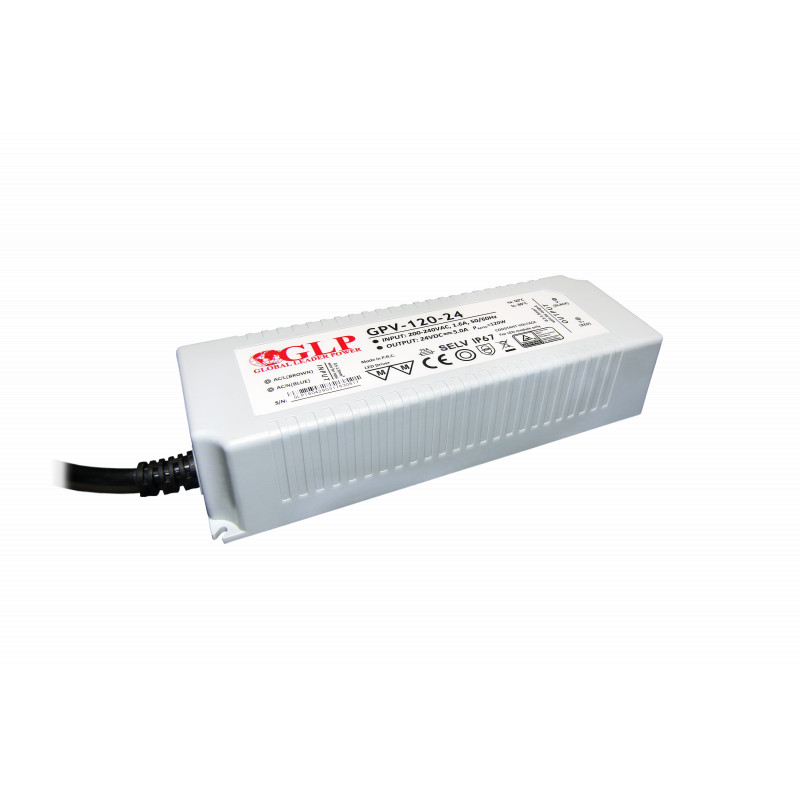

GPV-120-24 Constant Voltage LED Power Supply - 24 Volt - 5 Ampere - 120 Watt
Manufacturer: Global Leader Power
This waterproof power supply is ideal for powering 24 volt LED lighting up to 5 ampere.
More info
Global Leader Power GPV series
The GPV series from Global Leader Power are our best-selling power supplies. These LED power supplies are waterproof (IP67) allowing you to use them for example outdoors. They are also suitable for installation on furniture made of materials with unknown flammability properties. With the exception of the GPV-18 series, these power supplies accept all international mains voltages from 90 to 264 volts as input voltage, making them usable in other countries as well. In addition, they meet all safety requirements and include short-circuit protection.
Data sheet
| IP code | IP67 |
| Output voltage | 24 volt |
| Output current | 5 ampere |
| Power | 120 watt |
| Line regulation | ±1% |
| Load regulation | ±2% |
| Tolerance | ±5% |
| Ripple and noise | 300 millivolt peak to peak |
| Input voltage | 180 to 277 volt |
| Input frequency | 47 to 63 hertz |
| Efficiency | 89% |
| Leakage current | 0.25 milliampere |
| Setup time | 500 milliseconds |
| Rise time | 50 milliseconds |
| Hold up time | 18 milliseconds |
| Protection | Over temperature, Over voltage, Overload, Short circuit |
| Working temperature | -30 to 70 °C |
| Working humidity | 20 to 90% |
| Storage temperature | -30 to 70 °C |
| Storage humidity | 10 to 95% |
