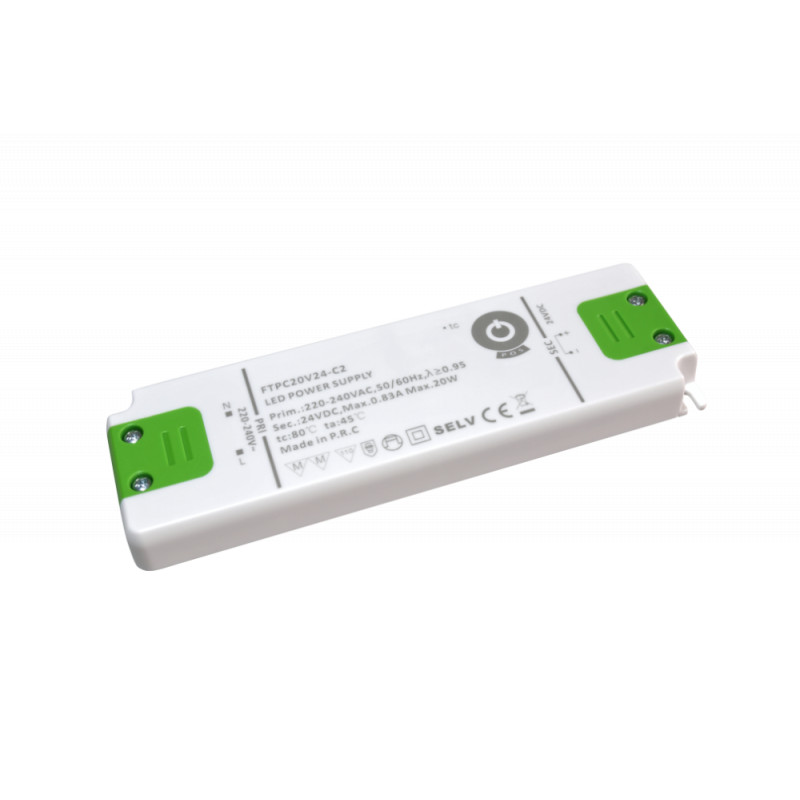

FTPC20V24-C2 Constant Voltage LED Power Supply - 24 Volt - 0.83 Ampere - 20 Watt
Manufacturer: POS Power
This power supply with active PFC is ideal for powering 24 volt LED lighting up to 0.83 ampere.
More info
POS Power FTPC-C2 series
The FTPC-C2 series from POS Power is the successor to the FTPC-C series. These successors are slightly more compact, making these LED power supplies even easier to install anywhere, as well as slightly cheaper. They are also suitable for installation on furniture made of materials with unknown flammability properties. The models starting from 30 watts contain active power factor correction (PFC), making the power factor of these power supplies well above 0.9. These power supplies accept all European mains voltages from 180 to 264 volts, making them usable in all European countries. They also meet all safety requirements and include short-circuit protection.
Data sheet
| Output voltage | 24 volt |
| Output current | 1.67 ampere |
| Power | 20 watt |
| Line regulation | ±0.5% |
| Load regulation | ±1% |
| Tolerance | ±5% |
| Ripple and noise | 720 millivolt peak to peak |
| Input voltage | 180 to 264 volt |
| Input frequency | 50 or 60 hertz |
| Efficiency | 85% |
| No load power consumption | 0.5 watt |
| Power factor | At least 0.95 |
| Setup time | 500 milliseconds |
| Hold up time | 5 milliseconds |
| Protection | Over current, Over temperature, Short circuit |
| Working temperature | -20 to 45 °C |
| Working humidity | 10 to 90% |
| Storage temperature | -30 to 70 °C |
| Storage humidity | 10 to 95% |
