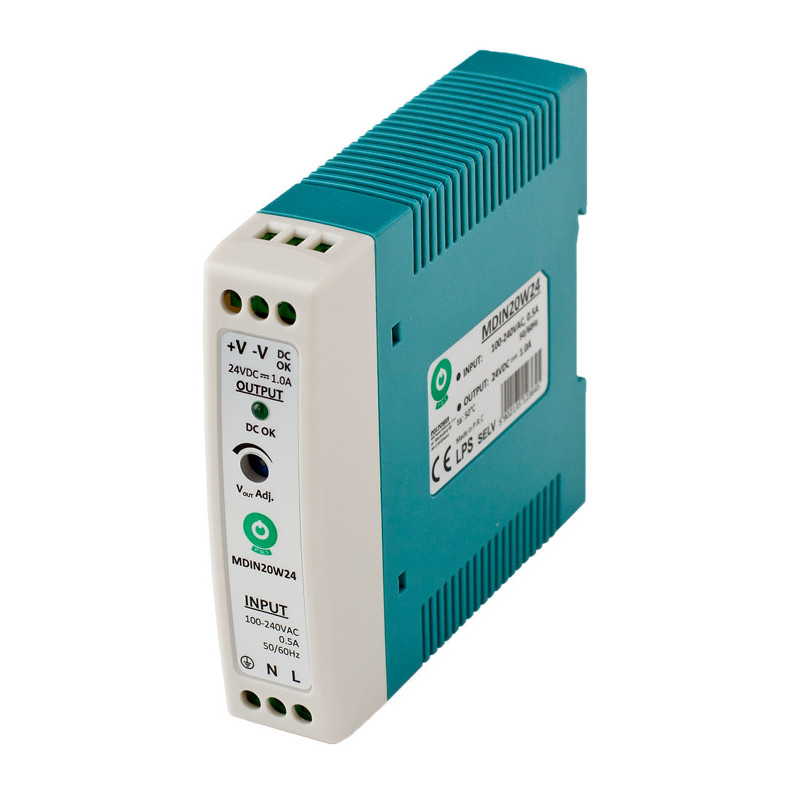

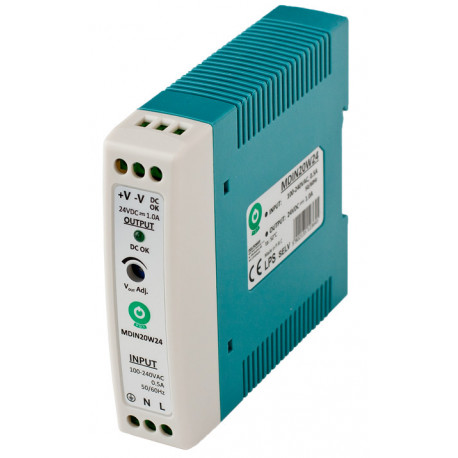

MDIN20W24 DIN Rail Power Supply - 24 Volt - 1 Ampere - 24 Watt
Manufacturer: POS Power
This power supply can be mounted on a DIN rail and is suitable for 24 volt devices up to 1 ampere.
More info
POS Power MDIN series
The MDIN series from POS Power are power supplies that can be installed on a TS-35/7.5 or TS-35/15 DIN rail. These DIN rail power supplies accept all international mains voltages from 90 to 264 volts as input voltage, making them usable in other countries as well. In addition they meet all safety requirements and include short-circuit protection.
Data sheet
| Output voltage | 24 volt |
| Output voltage adjustment range | 21 to 28 volt |
| Output current | 1 ampere |
| Power | 24 watt |
| Line regulation | ±0.5% |
| Load regulation | ±2% |
| Tolerance | ±5% |
| Ripple and noise | 280 millivolt peak to peak |
| Input voltage | 90 to 264 volt |
| Input frequency | 47 to 63 hertz |
| Efficiency | 82% |
| No load power consumption | 1 watt |
| Power factor | At least 0.5 |
| Setup time | 820 milliseconds |
| Rise time | 70 milliseconds |
| Hold up time | 65 milliseconds |
| Protection | Over current, Over temperature, Over voltage, Short circuit |
| Working temperature | -20 to 50 °C |
| Working humidity | 45 to 85% |
| Storage temperature | -30 to 70 °C |
| Storage humidity | 10 to 95% |
