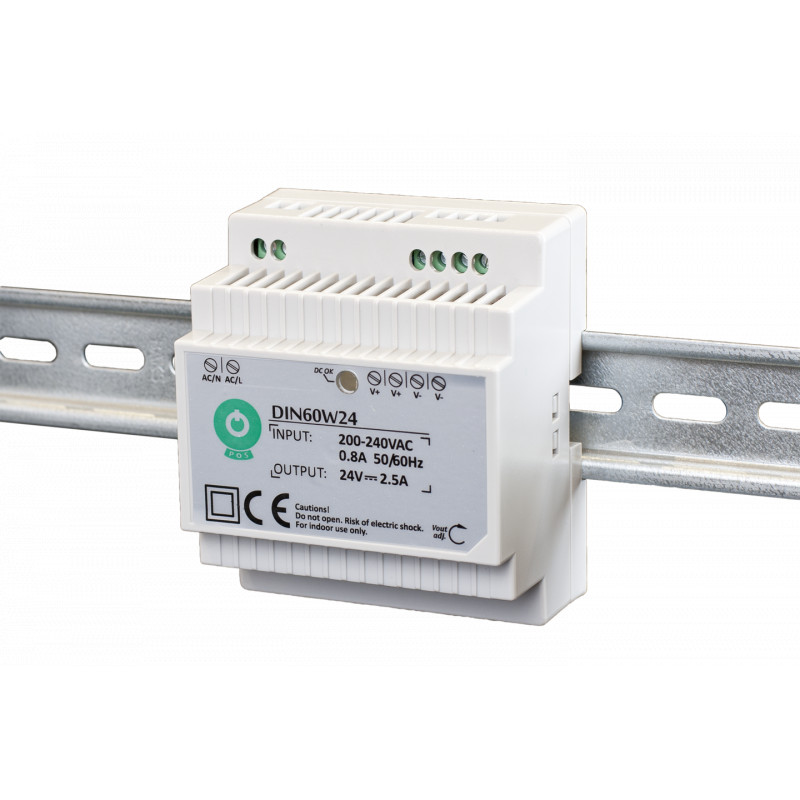

DIN60W24 DIN Rail Power Supply - 24 Volt - 2.5 Ampere - 60 Watt
Manufacturer: POS Power
This power supply can be mounted on a DIN rail and is suitable for 24 volt devices up to 2.5 ampere.
More info
POS Power DIN series
The DIN series from POS Power are power supplies that can be installed on a TS-35 DIN rail. These DIN rail power supplies accept all European mains voltages from 180 to 264 volts, making them usable in all European countries. Of course they meet all safety requirements and include short-circuit protection.
Data sheet
| Output voltage | 24 volt |
| Output voltage adjustment range | 23 to 26 volt |
| Output current | 5 ampere |
| Power | 60 watt |
| Line regulation | ±1% |
| Load regulation | ±2% |
| Tolerance | ±5% |
| Ripple and noise | 320 millivolt peak to peak |
| Input voltage | 180 to 264 volt |
| Input frequency | 47 to 63 hertz |
| Efficiency | 89% |
| No load power consumption | 0.5 watt |
| Power factor | At least 0.4 |
| Setup time | 500 milliseconds |
| Rise time | 60 milliseconds |
| Hold up time | 50 milliseconds |
| Protection | Over current, Over temperature, Over voltage, Short circuit |
| Working temperature | -20 to 50 °C |
| Working humidity | 45 to 85% |
| Storage temperature | -30 to 70 °C |
| Storage humidity | 10 to 95% |
